5.3L Engine Rebuild Page 29

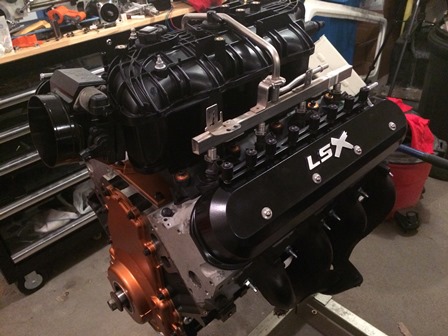

Figure 113
Figure 113

Figure 113. Another view of the coils on the spacers.

Figure 114
Figure 114

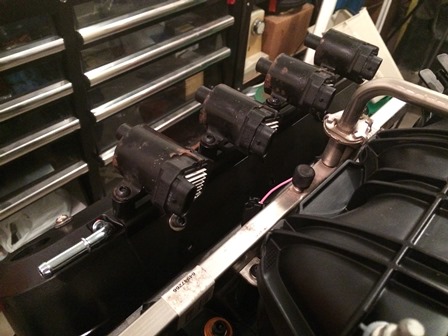

Figure 114. Rear view of the coils mounted on the brackets. Plenty of room to hook the wires up to them.

Figure 115
Figure 115

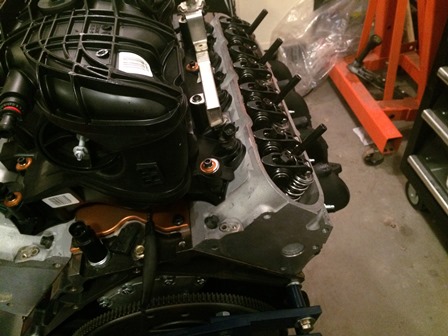

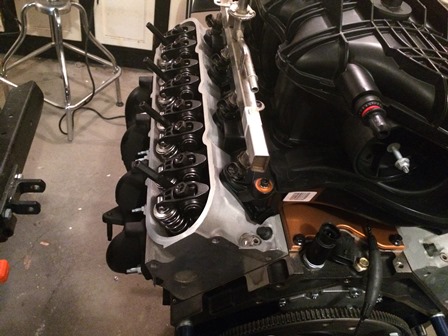

Figure 115 and 116. All of the roller rockers have finally arrived and have been installed. They were cleaned with denatured alcohol and then dunked in engine oil. The pushrods were treated the same, and each one was given a drop of assembly lube on each end. The rockers were installed and after the pushrods stopped spinning freely, preload on the lifters was set to between .030 and .035 by turning the poly lock nut 3/4 of a turn tighter from the point where the pushrod stopped spinning freely. This completes the major internal engine assembly.
