5.3L Engine Rebuild Page 16

Figure 61
Figure 61
Figure 62
Figure 62

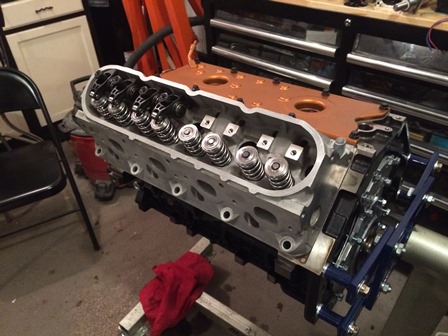

Figure 61. Test fitting the head. The rear cover is also placed in position, the bolts are hand tightened only at this point, same as for the front cover, until the cover an be aligned to the oil pan and crankshaft.

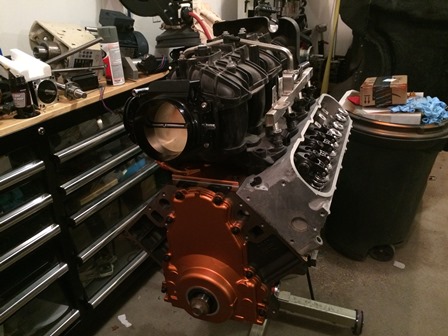

Figure 62. Test fitting the intake to see what it will look like when mounted. This thing will move some air!



Figure 64
Figure 64
Figure 63
Figure 63

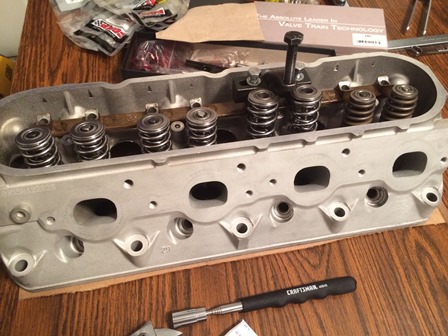

Figure 63. Changing the springs on the passenger side head to the Comp Cams dual valve springs. One change from the original plan is using the tool steel retainers instead of the titanium retainers. Cost was the major factor in that decision.

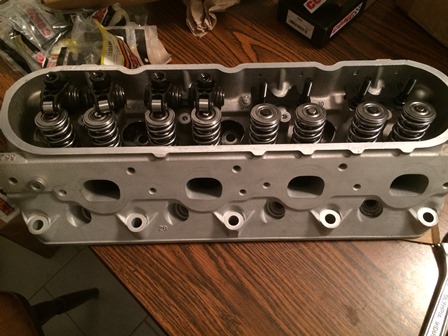

Figure 64. All changed out with the 5/16 pushrod guide plates and rocker studs for the roller rockers. The studs are torqued to 22ft lbs.
