4L60E Transmission Rebuild Page 18 of 32


Figure 58
Figure 58
Figure 59
Figure 59

Figure 58 and 59. End play should be between .015 and .030. As seen here, we have .018, and we are good. You can adjust the end play buy either buying a thicker or thinner selectable washer to put on the input drum, or getting the ten pack of .015 shims from Sonnax.

Once end play is set, remove the pump, dunk the torrington bearing that goes on top of the shims. Put the o-ring on the pump. Lube the case and pump o-ring. Install the pump into the case. Be careful not to tear the gasket. Install the bolts and torque to 18ft lbs.

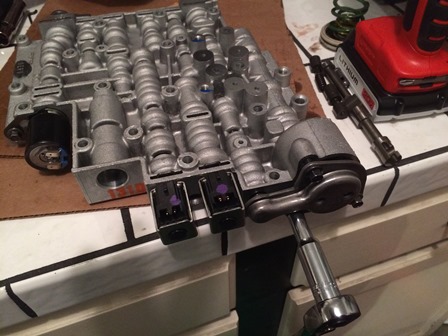

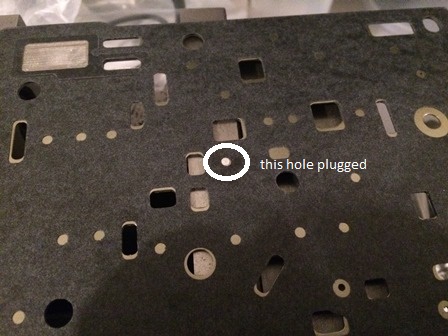

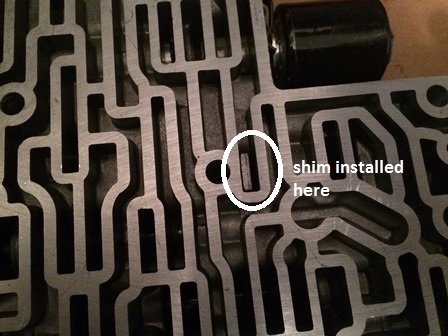

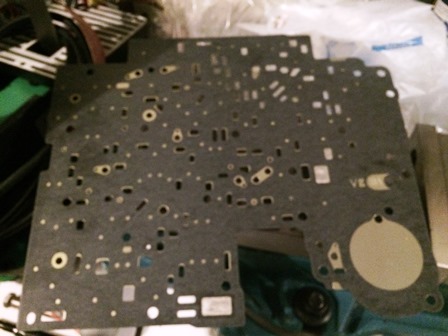

The rotating assembly is now complete. Now we will proceed to installing the valve body, and buttoning up the rest of the transmission.

Figure 61
Figure 61
Figure 60
Figure 60

Figure 60. Installed Russell Performance 6 AN adapters in place of the stock cooling line fittings. The new cooling lines will be braided stainless steel.

Figure 61. The new filter seal installed in the case. A 3/4 deep socket works well as a driver to install the seal with.
