4L60E Transmission Rebuild Page 9 of 33


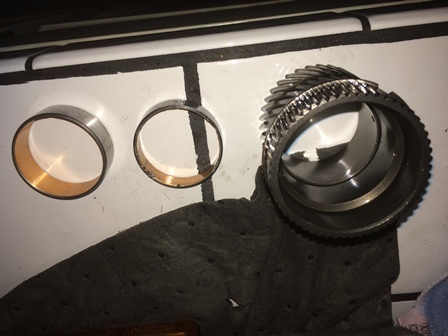

Figure 26
Figure 26

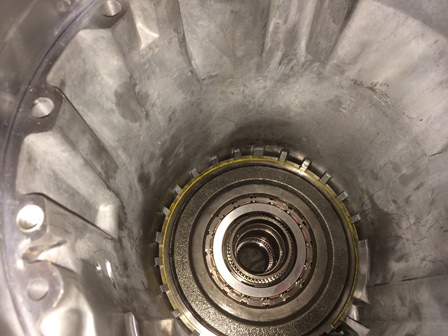

Figure 27
Figure 27

Figure 26. The conical spring steel is installed with the cone up towards the opening of the drum. Before going any further, soak the reverse input clutches in transmission fluid for 30 minutes.

Figure 27. The clutch is installed with a steel first, then a friction, then another steel and another friction, until you are just under the snap ring groove at the top.

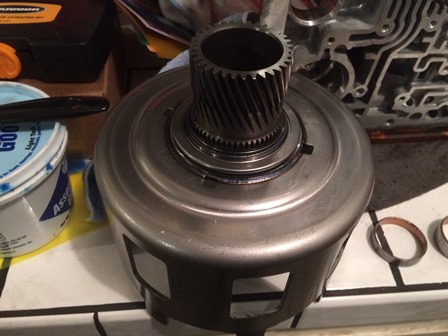

Figure 29
Figure 29

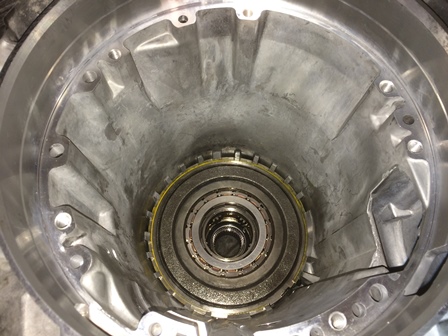

Figure 28
Figure 28

Figure 28. Now install the pressure plate with the flat surface towards the clutches.

Figure 29. Finish the reverse input drum by installing the outer snap ring. Check the clearance of the clutch pack to the pressure plate with a feeler gauge. Clearance should be between .040 and .076.
