Dana 300 Rebuild Page 12

Figure 23
Figure 23

Figure 23. The speedometer gear and the Advance Adapter Spacer Ring are now installed.

Figure 24
Figure 24

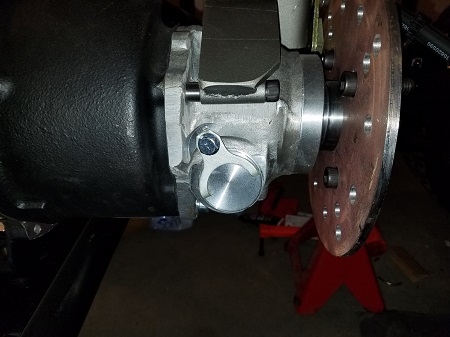

Figure 24. The outer housing is installed. The end play is preset from the factory, but it will be double checked later, just to be sure. Use silicone around the edges of the housing mating surface. Also, put a small dab of silicone on each bolt, as they go all the way through the side of the case and could potentially leak. As you can see here, there is no yoke yet, we will be installing a 1350 flange on here with a driveline brake when it arrives.
