LS Harness Conversion Page 9


Figure 33
Figure 33

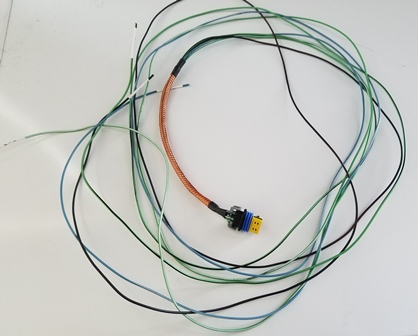

Figure 33. Throttle Position Connector, Delphi part number 13602480, terminal lock part number 15452678, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Gray. Wire B is 18ga TXL Black. Wire C is 18ga TXL Dark Blue. Wire A is hooked to Blue PCM Connector pin 46. Wire B is hooked to Blue PCM Connector pin 54. Wire C is hooked to Red PCM Connector pin 24.

Figure 34
Figure 34

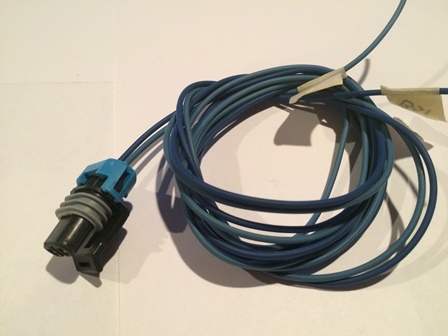

Figure 34. PCM Side Knock Sensor Connector, Delphi part number 12052641, terminal lock part number 12052634, 18ga female terminal part number 12048074, white 18ga cable seal part number 15324976. Wire A is 18ga TXL Dark Blue. Wire B is 18ga TXL Light Blue. Wire A is hooked to Blue PCM Connector pin 51. Wire B is hooked to Blue PCM Connector pin 11.

Figure 35
Figure 35

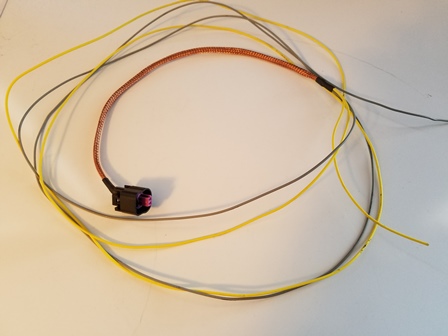

Figure 35. Engine Coolant Connector, Delphi part number 15336004, terminal lock part number 15305024, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Gray. Wire B is 18ga TXL Yellow. Wire A is hooked to Blue PCM Connector pin 63. Wire B is hooked to Blue PCM Connector pin 74.

Figure 36
Figure 36

Figure 36. Alternator Connector, Delphi part number 12186568, 18ga female terminal part number 1208074, white 18ga cable seal part number 15324976.
