LS Harness Conversion Page 6


Figure 21
Figure 21

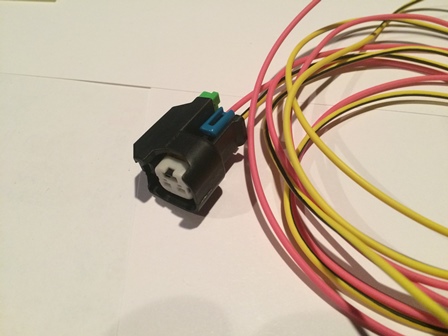

Figure 21. Injector 6 EV6 Connector, Delphi part number 15497399, connector lock part number 13821935, terminal lock part number 15423278, 18ga female terminal part number 12191819, white 18ga cable seal part number 15366021. Wire A is 18ga TXL Yellow/Black. Wire B is 18ga TXL Pink. Wire A is hooked to pin 37 on the Blue PCM Connector. Wire B is hooked to Run/Start Injector Fuse B, 15 amps.

Figure 22
Figure 22

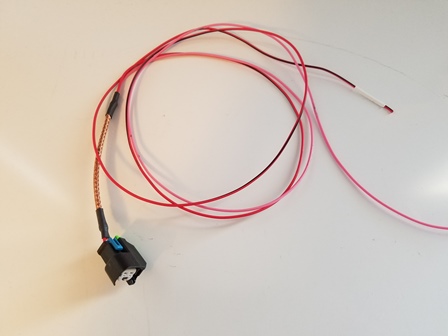

Figure 22. Injector 7 EV6 Connector, Delphi part number 15497399, connector lock part number 13821935, terminal lock part number 15423278, 18ga female terminal part number 12191819, white 18ga cable seal part number 15366021. Wire A is 18ga TXL Red/Black. Wire B is 18ga TXL Pink. Wire A is hooked to pin 43 on the Blue PCM Connector. Wire B is hooked to Run/Start Injector Fuse A, 15 amps.

Figure 23
Figure 23

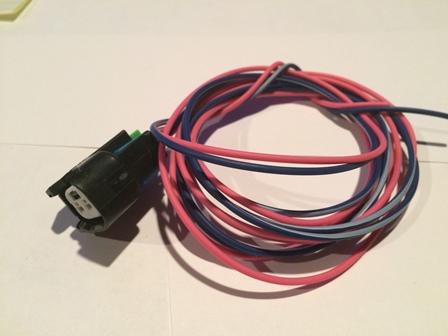

Figure 23. Injector 8 EV6 Connector, Delphi part number 15497399, connector lock part number 13821935, terminal lock part number 15423278, 18ga female terminal part number 12191819, white 18ga cable seal part number 15366021. Wire A is 18ga TXL Dark Blue/White. Wire B is 18ga TXL Pink. Wire A is hooked to pin 77 on the Blue PCM Connector. Wire B is hooked to Run/Start Injector Fuse B, 15 amps.

Figure 24
Figure 24

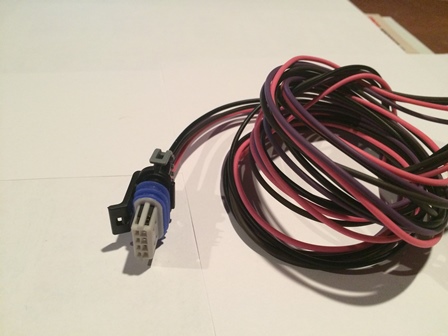

Figure 24. Coil 1 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown. Wire C is 18ga TXL Purple. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground behind power steering pump. Wire B is hooked to Red PCM Connector pin 60, spliced to B Wire on coils 3, 5, and 7. Wire C is hooked to Red PCM Connector pin 26. Wire D is hooked to Injector Fuse A, spliced to D Wire on coils 3, 5, and 7.
