LS Harness Conversion Page 10


Figure 37
Figure 37

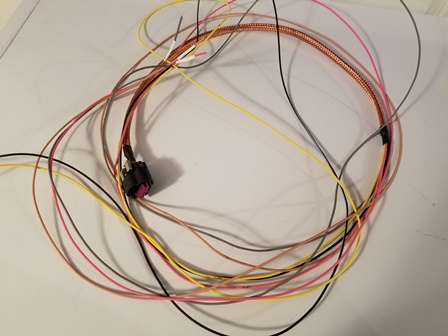

Figure 37. IAC 4-Way Connector, Delphi part number 15336035, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351.

Figure 38
Figure 38

Figure 38. MAF 5-Way Connector, Delphi part number 15305555, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351, terminal protection lock part number 15305557, connector protection lock 15317832.

Figure 39
Figure 39

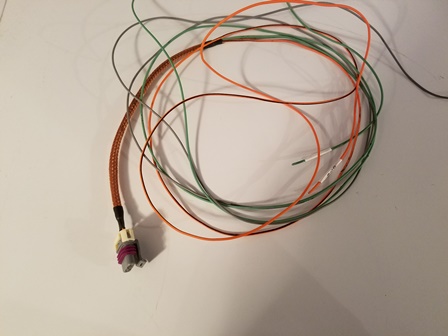

Figure 39. MAP 3-Way Connector, Delphi part number 12129946, terminal protection lock part number 12052845, 18ga female terminal part number 12048074, White 18ga cable seal part number 15324976.

Figure 40
Figure 40

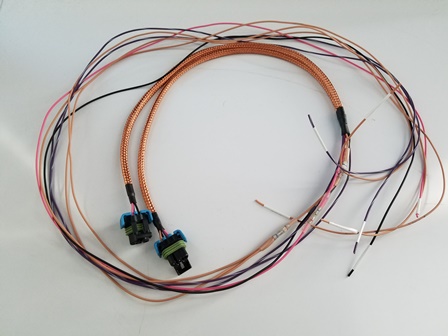

Figure 40. O2 5/4-Way Isolated Ground Sensor Connectors. Delphi part number 12146047, terminal protection lock part number 12092844, connector protection lock part number 12020833, 18ga female terminal part number 12048074, white 18ga cable seal part number 15324976.
