LS Harness Conversion Page 11


Figure 41
Figure 41

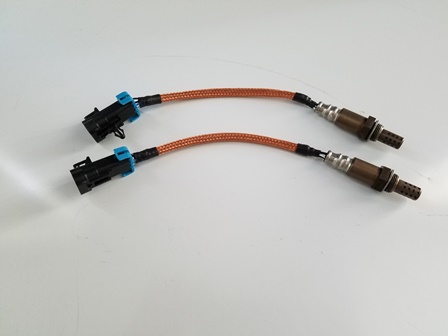

Figure 41. Isolated Ground O2 sensors. These are AC Delco part number 213-1694, also known as 12581966. These have the male Delphi connector already on them when purchased. The terminals were removed from the connectors, then the wires were sleeved with the copper braid. The terminals and connectors were then re-assembled. These are 5-slot connectors with only 4 slots available for use, the fifth is blocked off.

Figure 42
Figure 42

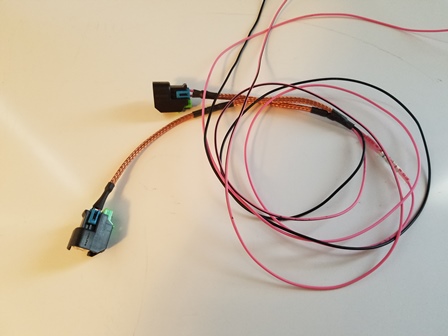

Figure 42. This is the start of the injector harness. All four of the driver side injector connectors get a 4-1/2 inch braid to start, with both ends covered with dual wall adhesive lined heat shrink. For Symmetry, Injector 1 gets a second piece of 4-1/2 inch braid sleeve. Heat shrink it to the first sleeve. On the back section of the second braid, insert the Injector 3 harness and heat shrink them together.

Figure 43
Figure 43

Figure 43.

Figure 44
Figure 44

Figure 44.
