LS Harness Conversion Page 8


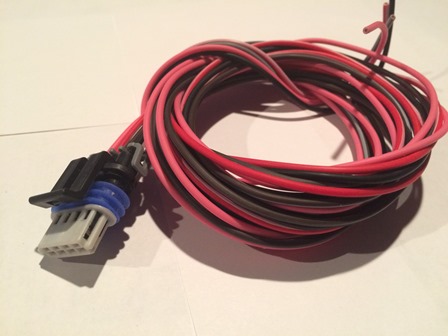

Figure 29
Figure 29

Figure 29. Coil 5 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown. Wire C is 18ga TXL Dark Green. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground behind power steering pump. Wire B is hooked to Red PCM Connector pin 60, spliced to B Wire on coils 1, 3, and 7. Wire C is hooked to Red PCM Connector pin 68. Wire D is hooked to Injector Fuse A, spliced to D Wire on coils 1, 3, and 7.

Figure 30
Figure 30

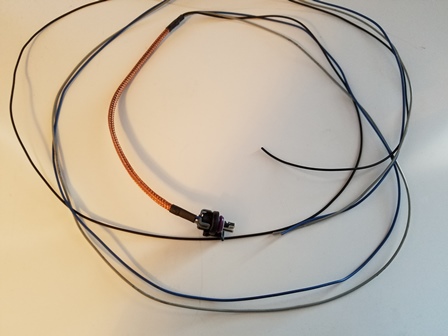

Figure 30. Coil 6 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown/White. Wire C is 18ga TXL Light Blue/White. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground drivers side head. Wire B is hooked to Red PCM Connector pin 61, spliced to B Wire on coils 2, 4, and 8. Wire C is hooked to Red PCM Connector pin 28. Wire D is hooked to Injector Fuse B, spliced to D Wire on coils 2, 4, and 8.

Figure 31
Figure 31

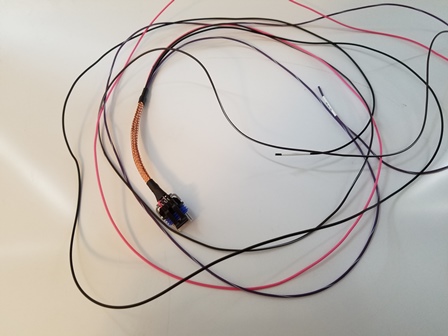

Figure 31. Coil 7 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown. Wire C is 18ga TXL Red. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground behind power steering pump. Wire B is hooked to Red PCM Connector pin 60, spliced to B Wire on coils 1, 3, and 5. Wire C is hooked to Red PCM Connector pin 27. Wire D is hooked to Injector Fuse A, spliced to D Wire on coils 1, 3, and 5.

Figure 32
Figure 32

Figure 32. Coil 8 Connector, Delphi part number 15439568, terminal lock part number 15305028, 18ga female terminal part number 15326267, yellow 18ga cable seal part number 15305351. Wire A is 18ga TXL Black. Wire B is 18ga TXL Brown/White. Wire C is 18ga TXL Purple/White. Wire D is 18ga TXL Pink. Wire A is hooked to engine block ground drivers side head. Wire B is hooked to Red PCM Connector pin 61, spliced to B Wire on coils 2, 4, and 6. Wire C is hooked to Red PCM Connector pin 66. Wire D is hooked to Injector Fuse B, spliced to D Wire on coils 2, 4, and 6.
