LS Harness Conversion Page 2


Figure 5
Figure 5
Figure 6
Figure 6

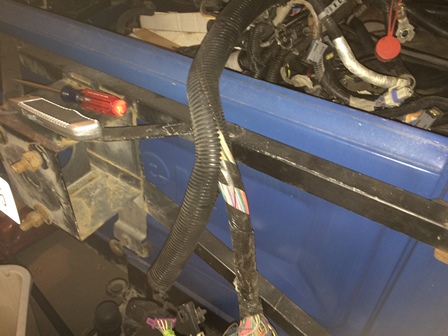

Figure 5. Pulling the loom off the main trunk after the C100 connector.

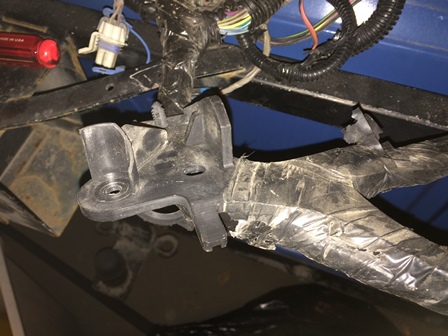

Figure 6. This is a harness holder that attaches to the intake manifold, it is taped to the harness. Carefully cut the tape and remove it.



Figure 8
Figure 8
Figure 7
Figure 7

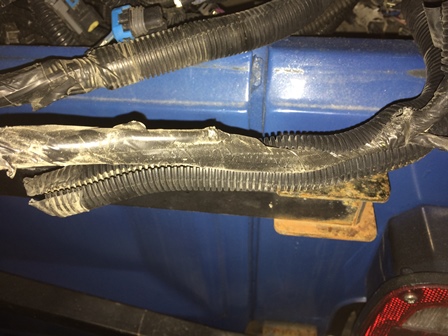

Figure 7. Continue to pull the loom off the harness until you reach a branching point.

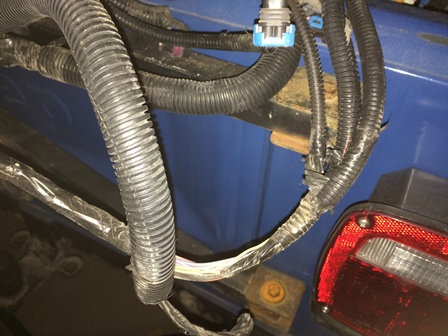

Figure 8. Here are the next brances of loom that will be removed from the harness.
