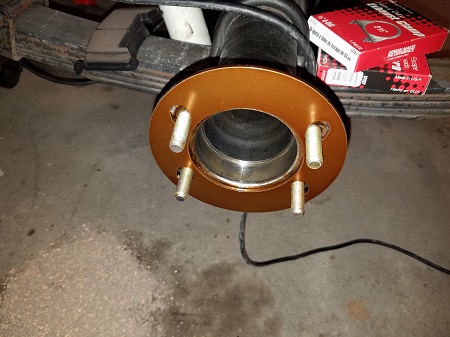

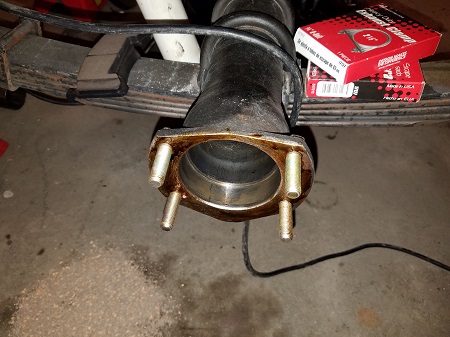

Figure 33. Coat the spacer plate on both sides with gasket sealer and install it on the studs.

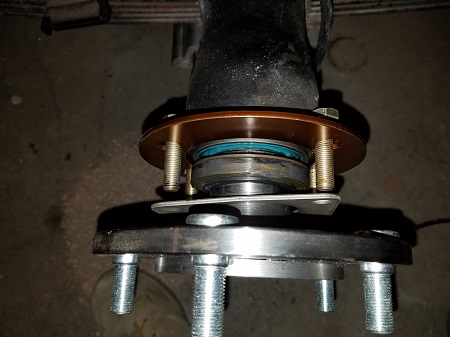

Figure 34. Place the round plate over the flange studs against the axle spacer plate.
Figure 35. Carefully install the axles in the housing, be careful not to damage the seal.

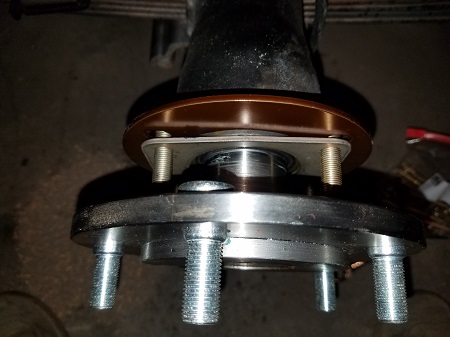

Figure 36. Guide the axle bearing retainer plate over the studs and push the axle the rest of the way in. Make sure the axle shaft is engaged with the carrier.
