Rear Dana44 Rebuild Page 10

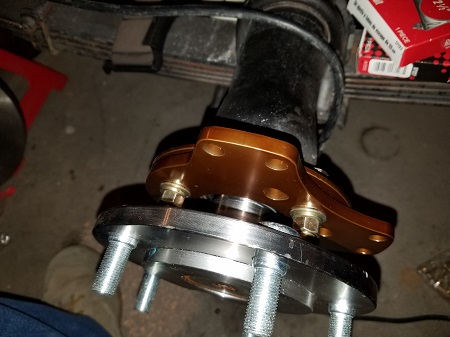

Figure 37
Figure 37

Figure 37. Slide the caliper bracket mount over the studs, make sure one ear is pointing to the back. This one is on the drivers side. Tighten down the axle retainer nuts on the studs.

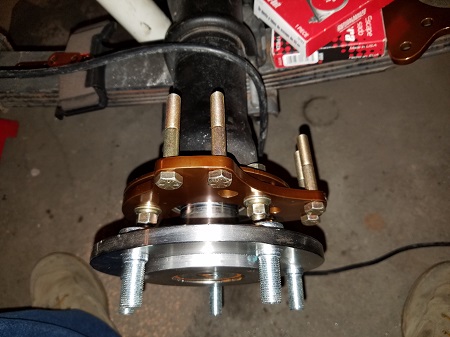

Figure 38
Figure 38

Figure 38. Insert the caliper bracket bolts into the plate. This hardware is all grade 8.

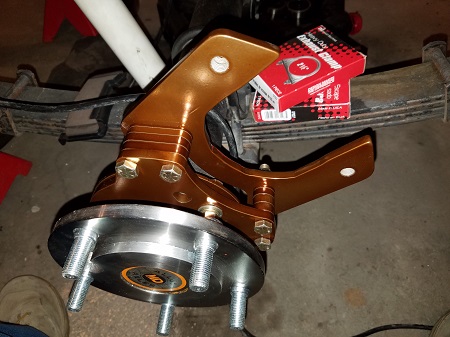

Figure 39
Figure 39

Figure 39. Slide the spacers and the caliper bracket onto the bolts. You may have to adjust the amount of spacers used to get the correct spacing of the calper to the rotor.

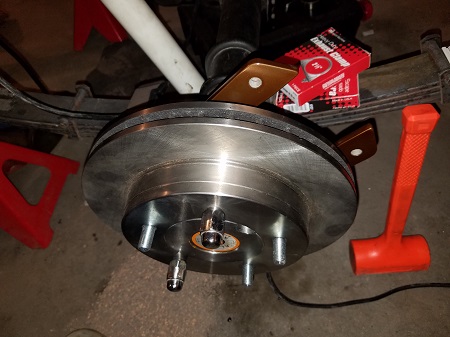

Figure 40
Figure 40

Figure 40. Slide the rotor onto the axle flange.
